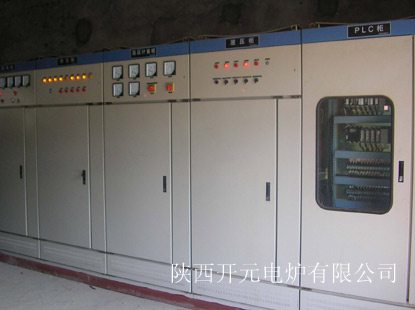

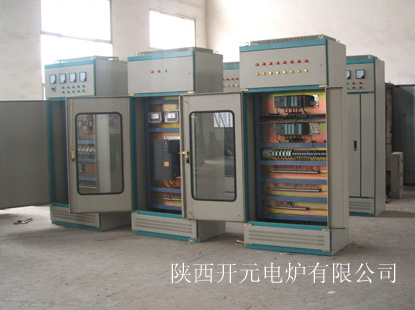

PLC Electrode Regulator

Time：2017-11-30 18:17:11 Hit：3635

The PLC electrode regulator is specially designed for application to steelmaking arc furnace, Ladle refining furnace and submerged arc furnace adopting advanced design theory。During Operation, the current , voltage and arc firing demonstrate steady，and, rapid trace, little oversetting, higher productivity and lower energy consumption are obtained．

Regulation principle (Basic and control) ：
The programmable logic controller, thru the signal transmitter and input module, send the voltage and current of arc and relevant signals to actuator so as to automatically regulate electrode position and the input arc power to meet metallurgical demand。
The arc power is controlled automatically.
Modular design has the powerful extending function。
Excellent ratio of property to price, better anti-interfere ability and strong dust-proof character.

Characters of hydraulic operation：
High reliability, lower failure rate and less maintenance work。
Shorter transient process and good arc tracing performance。
Steady arc and operation。
Better property of anti-interference．
The transducer for preventing electrode breaking can be installed。

Characters of Frequency Changer：
Reliable character and less maintenance work。
Smooth velocity change for higher service life of motor and reducer。
Stable arc generates little shock to electric grid。
Simple operation and careful protection function。
Moment control of electrode lifting could avoid electrode breaking。

Specification of electrode regulator

Rated capacity of furnace, ton	5	10	20	30	40	50
Maximum speed, up m/min	≥3.5	≥4	≥4.5	≥5
Maximum speed, down m/min	≥2	≥2	≥2.5	≥3
Asymmetrical coefficient for 3-phase impedance, %	≤8 in melting period ； ≤4 in refining period．
Setting range of arc current, %	25---125
Time of transition process, Sec	＜0.2 ( Response time of motor ≤0.1 sec )
Non-sensitivity zone, %	Melting period 2△l≤±10% ; Refining period 2△l≤±6%
